• Country
• United States of America (USA)

• Manufacturer / Brand
• Meissner Mfg. Div., Maguire Industries, Inc. (IL)

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 264815

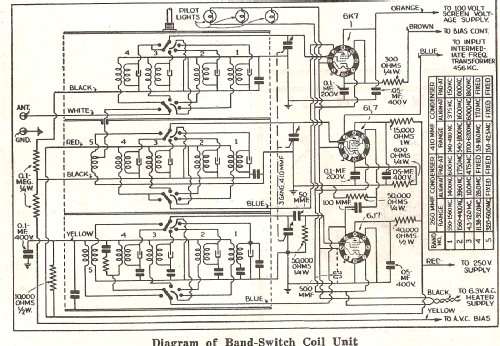

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6K7 6K7 6J7 6J7 6L7 6L7 6R7 6C5 6A7 6L6 6L6 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Custom All Wave 12 - Meissner Mfg. Div., Maguire

• Shape
• Chassis only or for «building in»

• Notes

• Covers 7.5 to 2140 meters (140 kHz to 42.5 MHz) in five bands with bandspread.  BFO with cut-out switch.

  Five different Multi-Wave Assemblies were available.  These assemblies consisted of tuning condenser, coils and calibrated 8-inch dial, so that the builder could customize what part of the 7.5 to 2140 meters he wanted the receiver to cover.

• Price in first year of sale
• 43.50 USD

• Mentioned in
• Short Wave and Television May 1937 pages 21 and 39.

• Author
• Model page created by Wayne Childress. See "Data change" for further contributors.
