• Country
• United States of America (USA)

• Manufacturer / Brand
• Meissner Mfg. Div., Maguire Industries, Inc. (IL)

• Year
• 1940

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 355316

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6Q7GT 6SQ7 25L6 25Z6 L55B

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Recording phonogr.-Disc Recorder

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

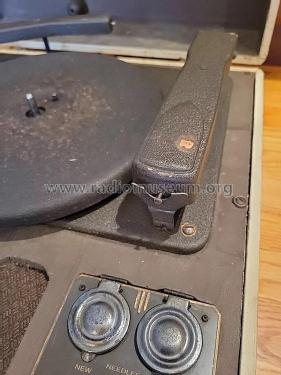

• Model: Phono-Recorder 9-1045 - Meissner Mfg. Div., Maguire

• Dimensions (WHD)
• 17 x 17 x 7 inch / 432 x 432 x 178 mm

• Notes

• From the advertisement: 5-tube built-in amplifier, may be used as a Public Address system, Includes crystal microphone.

  Uses powerful magnetic cutting head and highest grade crystal pickup.  Ample record storage space in the removable cover.  (Radio Retailing 3-1941)

  Note: The fifth tube is a ballast type, not counted as a tube in Rmorg.



• Price in first year of sale
• 59.50 USD

• Mentioned in
• Radio News (May 1941 p 41 (advertisement))

• Literature/Schematics (1)
• Radio Retailing (Radio & Television R.) (Dec 1940 p43, also March 1941 p64 (advertisements))

• Literature/Schematics (2)
• - - Manufacturers Literature (Meissner "How to Build" Instruction Manual, 53-1, 1952, pages 114-117.)

• Author
• Model page created by Rich Post. See "Data change" for further contributors.
