UKW-Eingangsverstärker UE85W
Meister & Gushurst, Elektrotechnik; Plauen (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Meister & Gushurst, Elektrotechnik; Plauen (Ostd.)
- Year
- 1956
- Category
- RF (Radio Frequency-) Amplifier
- Radiomuseum.org ID
- 104730

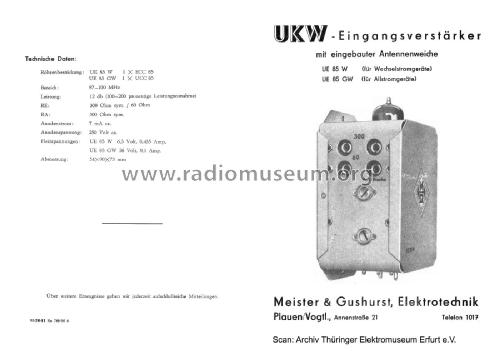

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- ECC85
- Main principle
- Radio Frequency Amplification only
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Powered by external power supply or a main unit. / 250 & 6,3 Volt
- Loudspeaker
- - - No sound reproduction output.

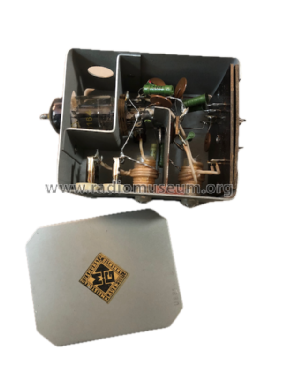

- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org
- Model: UKW-Eingangsverstärker UE85W - Meister & Gushurst,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 54 x 90 x 73 mm / 2.1 x 3.5 x 2.9 inch
- Notes
- Als UKW-Antennenverstärker mit eingebauter Antennenweiche für KML. Auch Variante für Allstrom mit UCC85 (UE85GW). Anschlussbelegung: 1 = Versorgungsspannung 250V 2 = Masse 3+4 = Heizung je nach Röhre 26 oder 6,3 V 5+6 = Ausgang zum Radio
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
