• Year
  • 1958 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 284817

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 220, 245 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Unbekannt - Meisterfunk; Radio-Fernsehen-

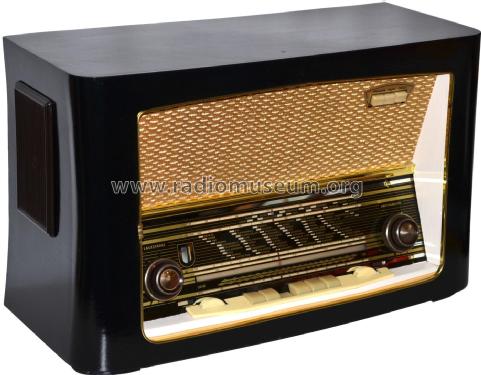

  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 572 x 348 x 245 mm / 22.5 x 13.7 x 9.6 inch
  • Notes
  • Magisches Auge EM80 ist unsicher - es könnte auch eine EM85 sein.


  • Net weight (2.2 lb = 1 kg)
  • 10 kg / 22 lb 0.4 oz (22.026 lb)
  • Author
  • Model page created by Karlheinz Gützlaff. See "Data change" for further contributors.
