• Country
• Germany

• Manufacturer / Brand
• Mende - Radio H. Mende & Co. GmbH, Dresden

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 245712

• • Brand: System Günther

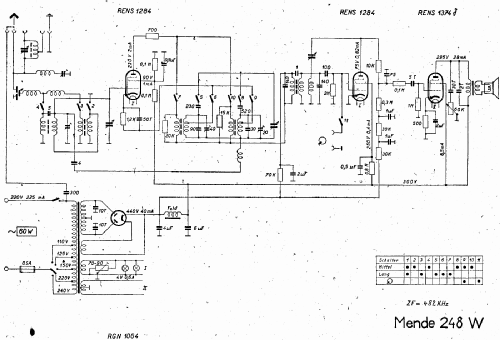

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1284 RENS1284 RENS1374d RGN1064

• Main principle
• Superheterodyne (common); ZF/IF 482 kHz

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 248W [Holzgehäuse] - Mende - Radio H. Mende & Co.

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes

• Auch in Bakelitgehäuse.

• Price in first year of sale
• 248.00 RM

• Mentioned in

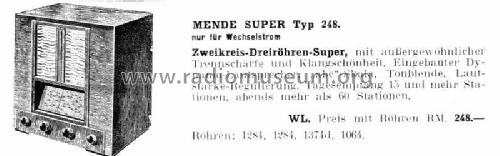

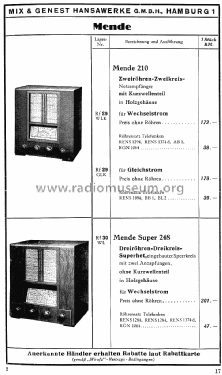

• Radio-Katalog, Mix & Genest Hansawerke, 1935

• Author
• Model page created by a member from D. See "Data change" for further contributors.
