- Country
- Germany
- Manufacturer / Brand
- Mende - Radio H. Mende & Co. GmbH, Dresden
- Year
- 1929–1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3497
-
- Brand: System Günther
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF with regeneration; 1 Special; 2 AF stage(s); Neutrodyne
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

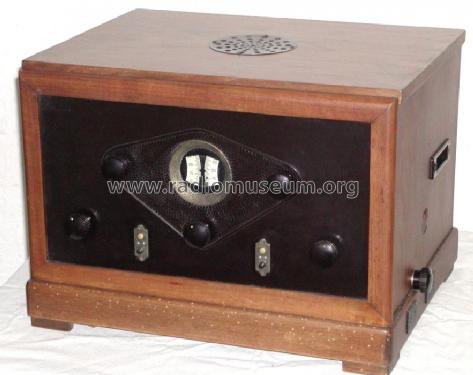

- Model: E48N - Mende - Radio H. Mende & Co.
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 415 x 320 x 295 mm / 16.3 x 12.6 x 11.6 inch
- Net weight (2.2 lb = 1 kg)
- 15 kg / 33 lb 0.6 oz (33.04 lb)
- Price in first year of sale
- 442.00 RM !
- Source of data
- Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Lehner & Küchenmeister 1929
- Other Models
-
Here you find 316 models, 283 with images and 206 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Mende - Radio H. Mende & Co. GmbH, Dresden
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Mende - Radio H.: E48N
Threads: 1 | Posts: 2
Hallo,
Mein Mende E48N unterscheidet sich vom angelegten hinsichtlich des Netzschalters und des Übertragers (sofern dieser original ist). Handelt es sich um eine ältere oder neuere Ausführung und sollte es als neues Modell vorgeschlagen werden?
Giovanni Cucuzzella
Attachments

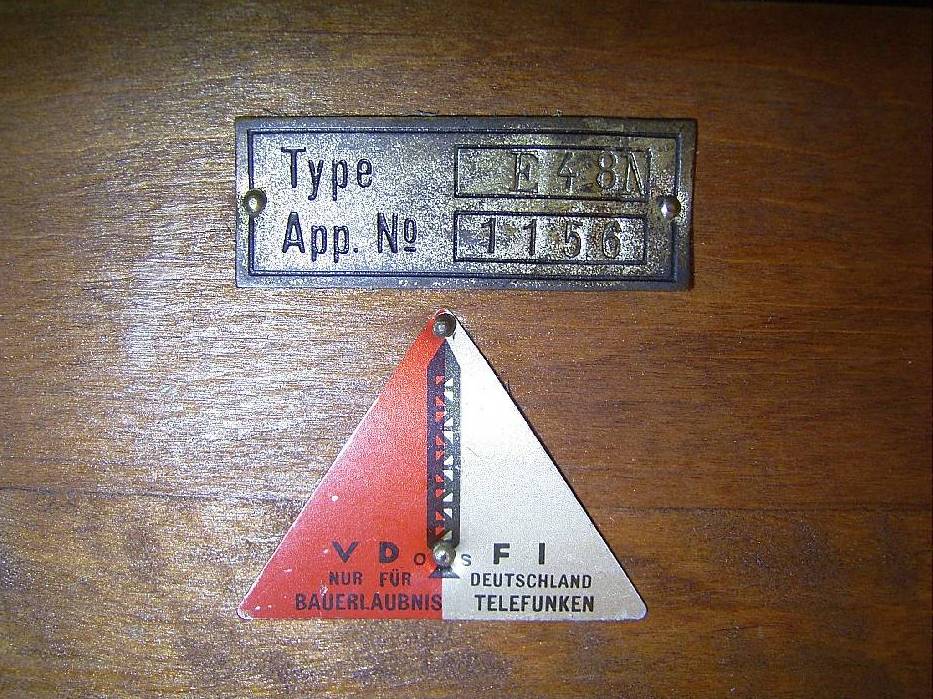

- Typenschild (161 KB)
- Netzschalter (116 KB)

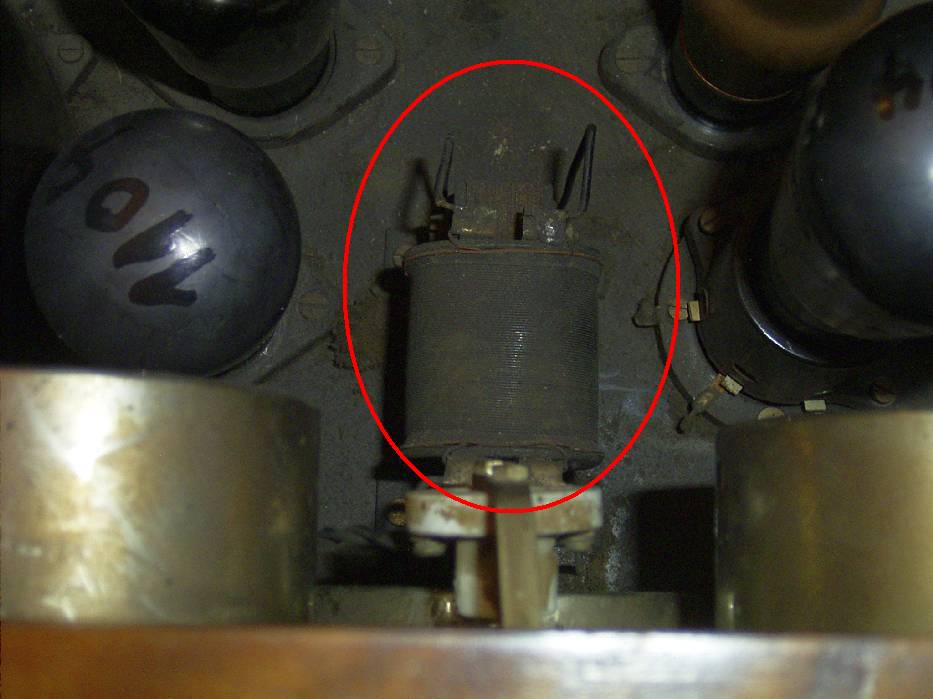

- Uebertrager (57 KB)
Giovanni Cucuzzella, 23.Jul.11
