Gross-Super 340WL

• Country
• Germany

• Manufacturer / Brand
• Mende - Radio H. Mende & Co. GmbH, Dresden

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3596

• • Brand: System Günther

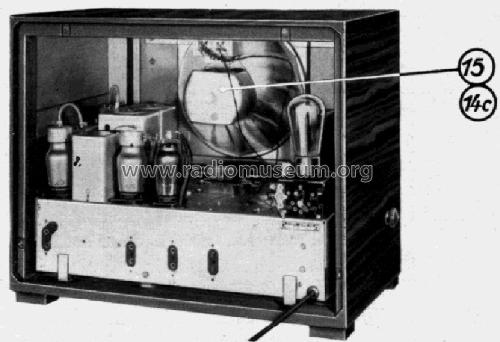

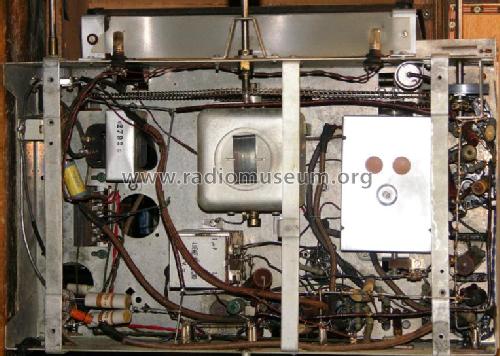

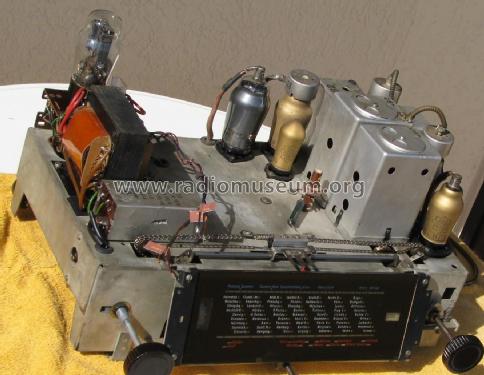

• Picture

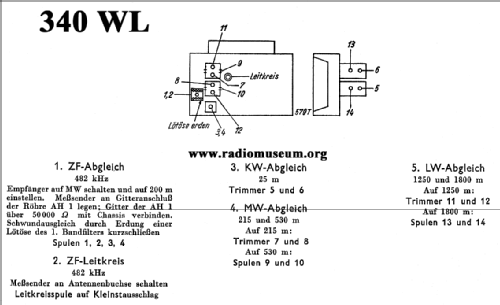

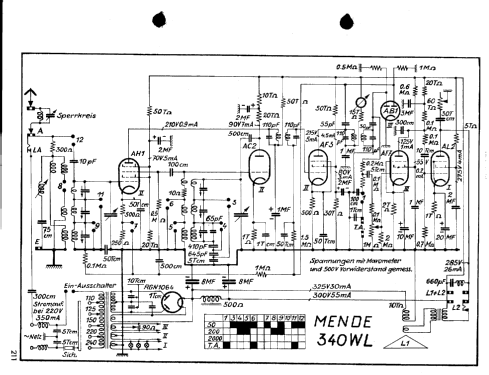

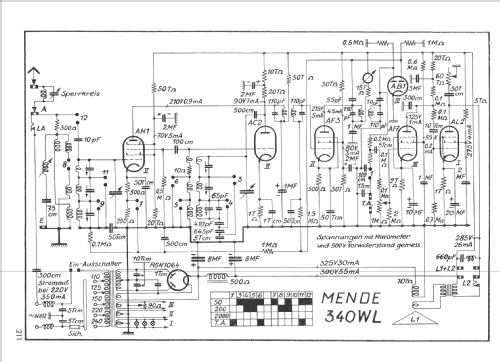

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

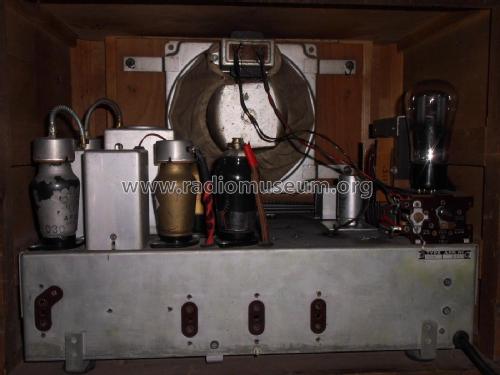

• Valves / Tubes
• AH1 AC2 AF3 AB1 AF7 AL2 RGN1064

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

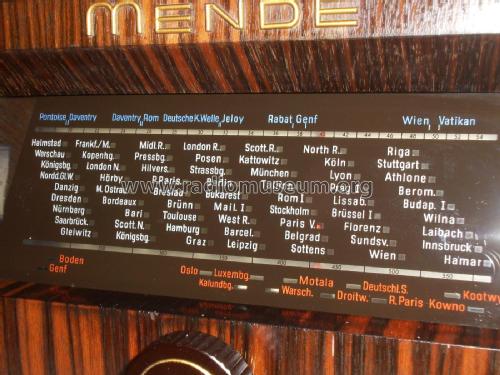

• Wave bands
• Broadcast, Long Wave and Short Wave.

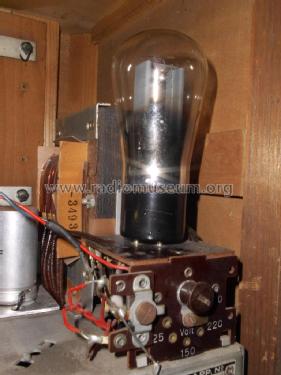

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

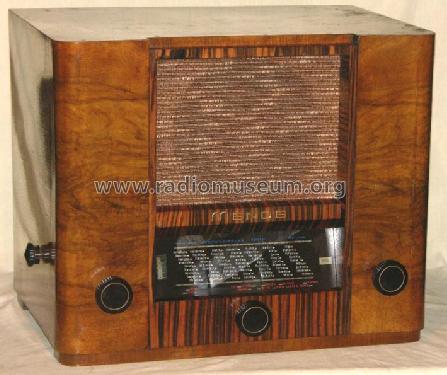

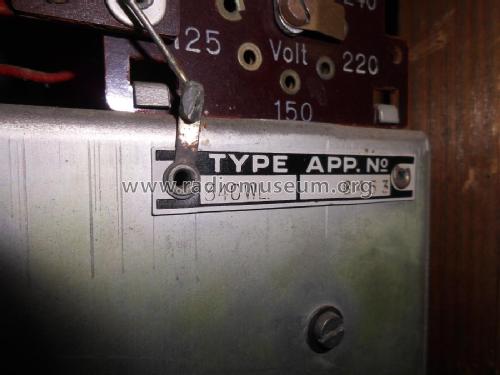

• Model: Gross-Super 340WL - Mende - Radio H. Mende & Co.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 405 x 320 mm / 19.3 x 15.9 x 12.6 inch

• Notes
• Feldstärke-Anzeige, "Fadinganzeiger".

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Price in first year of sale
• 340.00 RM

• Source of data
• HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

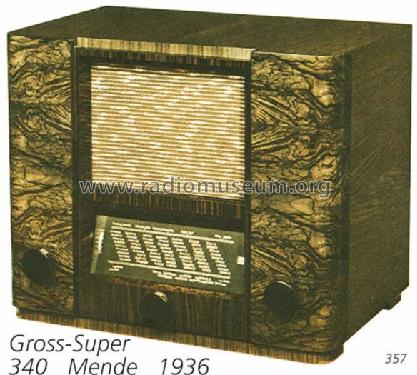

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
