Gross-Super M355 - 355W

• Country
• Germany

• Manufacturer / Brand
• Mende - Radio H. Mende & Co. GmbH, Dresden

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3584

• • Brand: System Günther

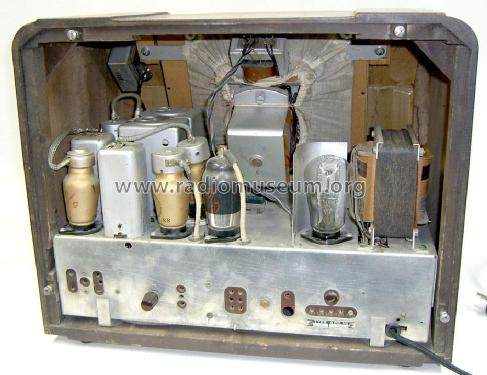

• Picture

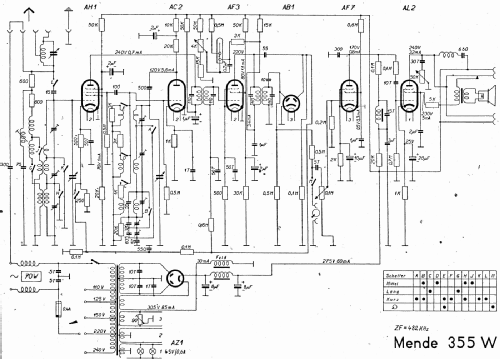

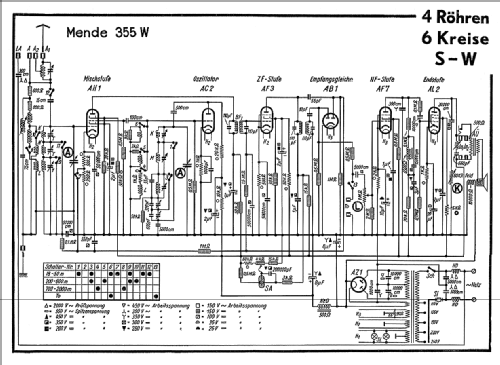

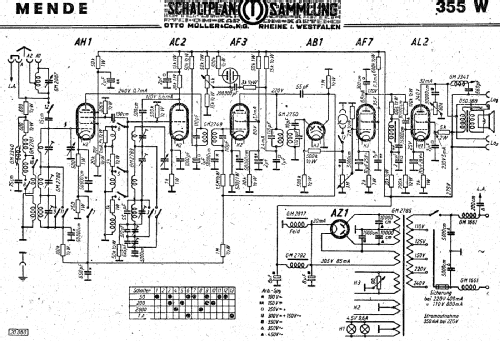

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• AH1 AC2 AF3 AB1 AF7 AL2 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 482 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Gross-Super M355 - 355W - Mende - Radio H. Mende & Co.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 470 x 370 x 320 mm / 18.5 x 14.6 x 12.6 inch

• Notes

• Feldstärke-Anzeige.

  Dokumentationen und Kataloge führen dieses Mende-Modell mit 355W, Typschilder zeigen dagegen (auch) M355. Es handelt sich dabei um ein- und dasselbe Modell.

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Price in first year of sale
• 355.00 RM

• Source of data
• Katalog Radio-Zentrale Alex v. Prohaska 1935/1936 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

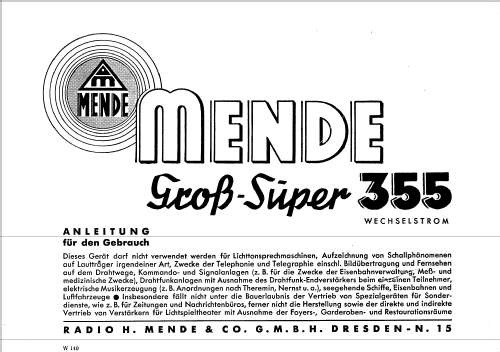

• Documents regarding this model
