• Country
• Germany

• Manufacturer / Brand
• Mende - Radio H. Mende & Co. GmbH, Dresden

• Year
• 1930 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 298725

• • Brand: System Günther

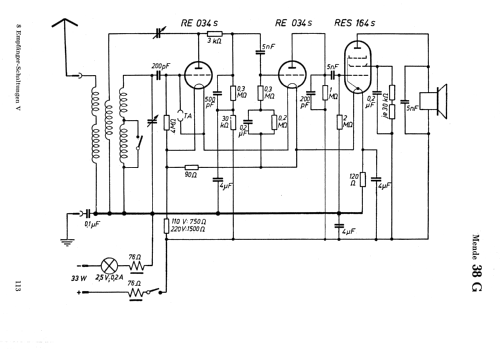

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RE034s RE034s RES164ds

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Mende 38 38G [DC, Metall, neue Skala] - Mende - Radio H. Mende & Co.

• Shape
• Tablemodel, slant panel.

• Notes

• Wellenbereich 200 - 200 Meter.

  Preis inkl. Röhren.

  Der Prospekt nenn nicht die vollständigen Röhrentypen; bei Serienheizung kommen speziell selektierte Versionen dieser Röhren zum Einsatz.

  Siehe Modellblatt Mende 38 (allgemein).

• Price in first year of sale
• 177.50 RM

• Mentioned in
• -- Original prospect or advert
