Oktoden-Super M278-GW (278GW) Holz
Mende - Radio H. Mende & Co. GmbH, Dresden
- Country
- Germany
- Manufacturer / Brand
- Mende - Radio H. Mende & Co. GmbH, Dresden
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 206891
-
- Brand: System Günther

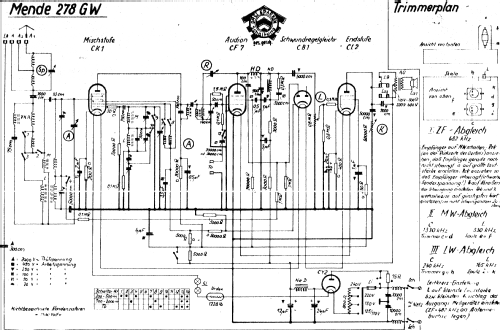

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet, IF regeneration; ZF/IF 482 kHz; Reaction
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 110-125; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Oktoden-Super M278-GW [Holz] - Mende - Radio H. Mende & Co.
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
- Parallelmodell zum M278GW Bakelit.
Das Typschild des Empfängers zeigt M278GW, dagegen führen die Service-Unterlagen die Typbezeichnung 278GW. Es handelt sich dabei um dasselbe Modell.
- Source of data
- Historische Radios Band II
- Author
- Model page created by Martin Steyer. See "Data change" for further contributors.
