Super 400GW
Mende - Radio H. Mende & Co. GmbH, Dresden
- Country
- Germany
- Manufacturer / Brand
- Mende - Radio H. Mende & Co. GmbH, Dresden
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3643
-
- Brand: System Günther

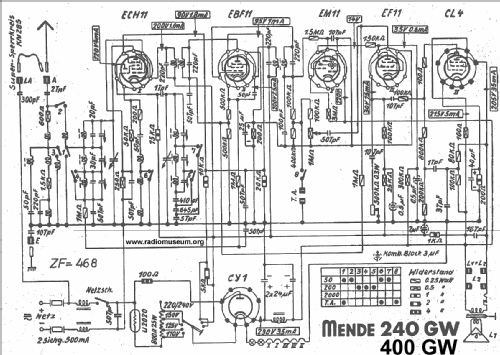

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Super 400GW - Mende - Radio H. Mende & Co.
- Notes
- gem. Thali (Ch=240GW)
- Source of data
- Radiokatalog Band 1, Ernst Erb
