• Country
• Germany

• Manufacturer / Brand
• Mende - Radio H. Mende & Co. GmbH, Dresden

• Year
• 1935 ??

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 352251

• • Brand: System Günther

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• ZF/IF 468 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: Superspulensatz KM 560 - Mende - Radio H. Mende & Co.

• Shape
• Chassis only or for «building in»

• Mentioned in

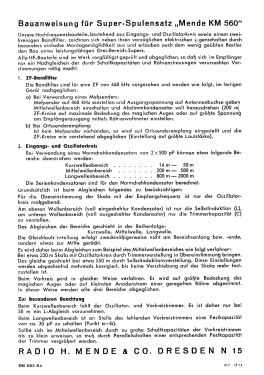

• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Müllner. See "Data change" for further contributors.
