Tongenerator TG5-2 KM581
Mende - Radio H. Mende & Co. GmbH, Dresden
- Country
- Germany
- Manufacturer / Brand
- Mende - Radio H. Mende & Co. GmbH, Dresden
- Year
- 1938 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 225712
-
- Brand: System Günther
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Tongenerator TG5-2 KM581 - Mende - Radio H. Mende & Co.
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 360 x 200 x 240 mm / 14.2 x 7.9 x 9.4 inch
- Notes
-

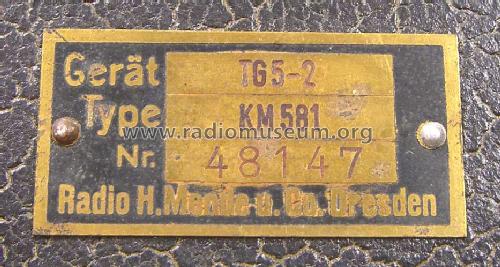

Mende Tongenerator TG5-2 Type KM581;
Frequenzbereiche: 0...500 Hz, 0...15 kHz
Regelbare Amplitude, Umschalter Eichen-Messen.
- Net weight (2.2 lb = 1 kg)
- 9.1 kg / 20 lb 0.7 oz (20.044 lb)
- Author
- Model page created by Alexander Schwarz. See "Data change" for further contributors.
