• Country
• Germany

• Manufacturer / Brand
• Mende - Radio H. Mende & Co. GmbH, Dresden

• Year
• 1933–1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166090

• • Brand: System Günther

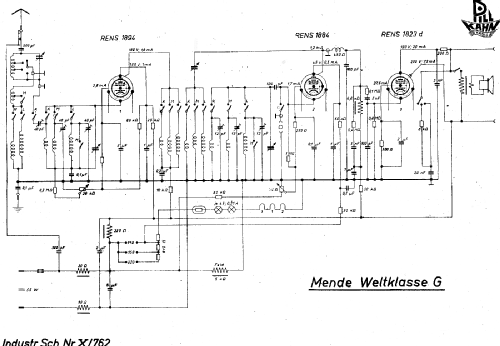

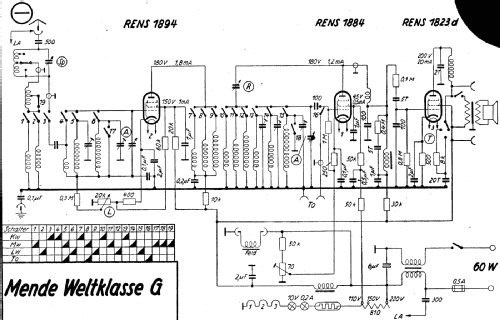

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RENS1894 RENS1884 RENS1823d Eisen-Wasserstoff-W

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

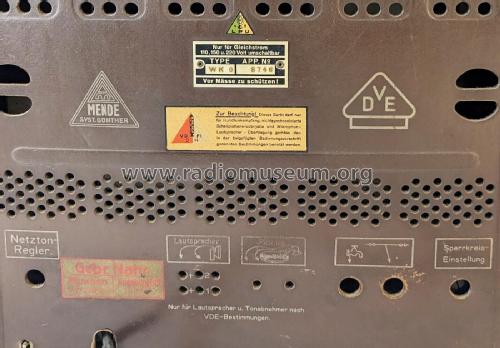

• Power type and voltage
• Direct Current supply (DC) / 110; 150; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Weltklasse WK G [Holz, mit Lautsprecher] - Mende - Radio H. Mende & Co.

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 360 x 450 x 260 mm / 14.2 x 17.7 x 10.2 inch

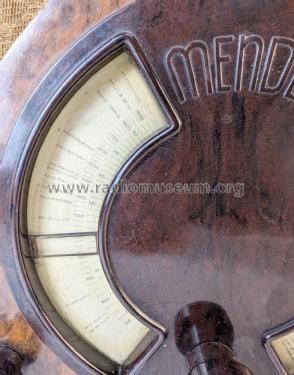

• Notes
• große Propellerskala.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Literature/Schematics (1)
• Schenk-Regelien

• Literature/Schematics (2)
• -- Schematic (OTO- Schaltungen)

• Literature/Schematics (3)
• Lange / Nowisch, "Empfängerschaltungen der Radioindustrie" (Band V S.122)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
