Weltklasse W(K) Holz, m.Lautsprecher

Mende - Radio H. Mende & Co. GmbH, Dresden

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Mende - Radio H. Mende & Co. GmbH, Dresden

Year
1933–1935

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
3557

- Brand: System Günther

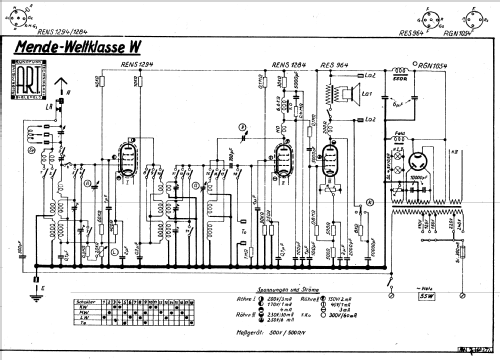

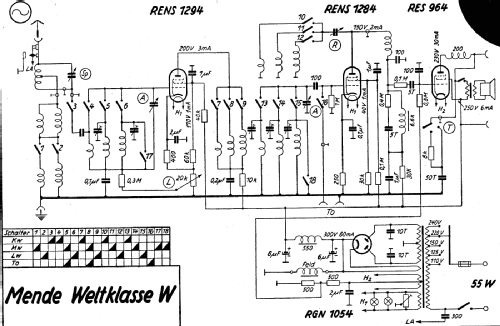

Schematics

Weltklasse W; Mende - Radio H. (ID = 23787) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 4944) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 23788) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 350223) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 723823) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 723839) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 723840) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 723841) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 723842) Radio — Mende - Radio H. Weltklasse W (3)

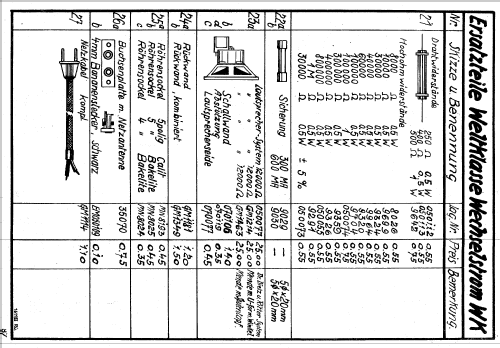

Weltklasse W; Mende - Radio H. (ID = 723843) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 723844) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 723845) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 723846) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 723847) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 2109566) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 2113347) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 2410158) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 2924614) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 2958969) Radio — Mende - Radio H. Weltklasse W (3)

Weltklasse W; Mende - Radio H. (ID = 2963330) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 2963338) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 2963337) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 812162) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 156701) Radio — Mende - Radio H. Weltklasse W (1)

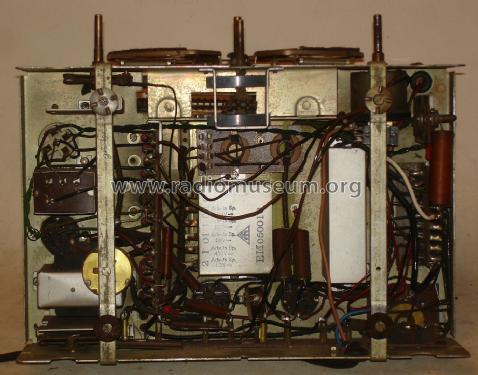

D_Mende_1933_WK_Weltklasse_Innendetail

Weltklasse W; Mende - Radio H. (ID = 156697) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 485) Radio — Mende - Radio H. Weltklasse W (2)

Weltklasse W; Mende - Radio H. (ID = 156698) Radio — Mende - Radio H. Weltklasse W (1)
D_Mende_1933_WK_Weltklasse_Nur Gehäuse

Weltklasse W; Mende - Radio H. (ID = 156699) Radio — Mende - Radio H. Weltklasse W (1)

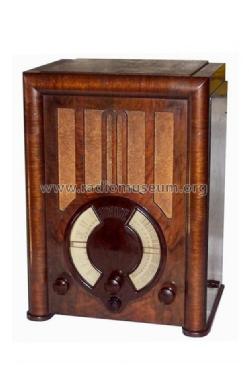

D-Mende_1933_WK_Weltklasse_Frontansicht

Weltklasse W; Mende - Radio H. (ID = 156700) Radio — Mende - Radio H. Weltklasse W (1)
D_Mende_1933_WK_Weltklasse_Frontdetail

Weltklasse W; Mende - Radio H. (ID = 1576465) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 1576466) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 1576467) Radio — Mende - Radio H. Weltklasse W (1)

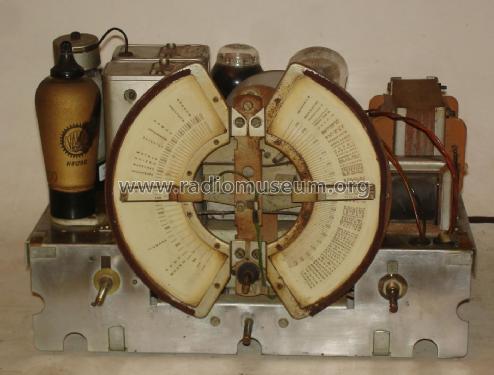

Weltklasse W; Mende - Radio H. (ID = 2963331) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 2963332) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 2963333) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 2963334) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 2963335) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 2963336) Radio — Mende - Radio H. Weltklasse W (1)

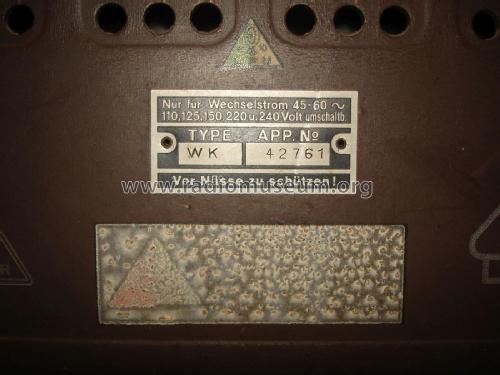

Weltklasse W; Mende - Radio H. (ID = 2963339) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 2963340) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 2963341) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 2963344) Radio — Mende - Radio H. Weltklasse W (1)

Weltklasse W; Mende - Radio H. (ID = 2963345) Radio — Mende - Radio H. Weltklasse W (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
4

Valves / Tubes
RENS1294 RENS1284 RES964 RGN1064

Main principle
TRF with regeneration; 1 Special; 1 AF stage(s)

Tuned circuits
2 AM circuit(s)

Wave bands
Broadcast, Long Wave and Short Wave.

Power type and voltage
Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Power out
3 W (unknown quality)

Material
Wooden case

from Radiomuseum.org
Model: Weltklasse W [Holz, m.Lautsprecher] - Mende - Radio H. Mende & Co.

Shape
Tablemodel, high profile (upright - NOT Cathedral nor decorative).

Dimensions (WHD)
371 x 481 x 262 mm / 14.6 x 18.9 x 10.3 inch

Notes
KW=19-55m. Unterschied unklar zwischen W und WK.

Net weight (2.2 lb = 1 kg)
14.7 kg / 32 lb 6.1 oz (32.379 lb)

Source of data
Radiokatalog Band 1, Ernst Erb

Circuit diagram reference
Lange+Schenk+FS-Röhrenbestückung

Literature/Schematics (1)
-- Schematic (OTO-Schaltungen)

Picture reference
Das Modell ist im «Radiokatalog» (Erb) abgebildet.
