• Country
• Poland

• Manufacturer / Brand
• Meratronik SA; Warszawa

• Year
• 1975 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 217259

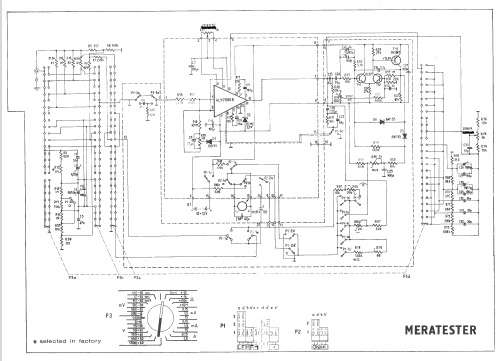

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• BC527 BC527 2N2907

• Wave bands
• - without

• Power type and voltage
• Line / Batteries (any type) / 115; 230 / 12 x 1,5 & 1 x 1,35 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Meratester V40.28 - Meratronik SA; Warszawa

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 165 x 185 x 85 mm / 6.5 x 7.3 x 3.3 inch

• Notes
• IC: HLY-7006R
  The 1,35 V battery is used for resistance measurement.

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Literature/Schematics (4)
• -- Schematic
