Mercedes
Mercedes Products; Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Mercedes Products; Chicago
- Year
- 1934 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 180399
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4.5 inch = 11.4 cm
- Power out
- 2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

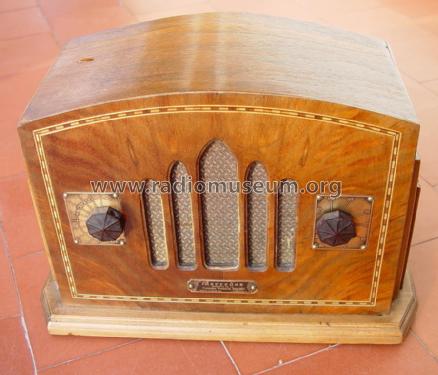

- Model: Mercedes - Mercedes Products; Chicago
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 270 x 200 x 130 mm / 10.6 x 7.9 x 5.1 inch
- Notes
-

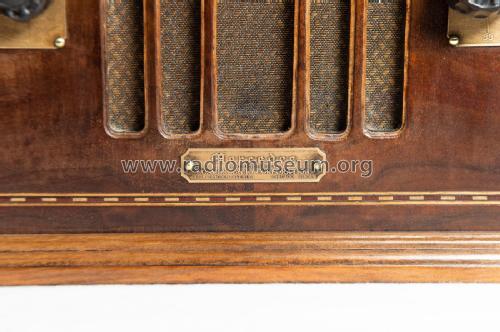

Obviously Export for the Latin American or Spanish market (see escutcheon).
The given tube 25Z6 is from 1936 (market introduction, but if it is a 25Z5 (typo) then the year 1933 or 1934 would be possible. We changed the tube to 25Z5.
- Net weight (2.2 lb = 1 kg)
- 2.5 kg / 5 lb 8.1 oz (5.507 lb)
- Author
- Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
