- Country
- Germany
- Manufacturer / Brand
- Messelektronik Berlin, VEB, RFT (Ostd.)
- Year
- 1986
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 187728
ebay-VK: aveaventin
ebay-VK: aveaventin
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver; ZF/IF 200 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit. / DC 12,6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

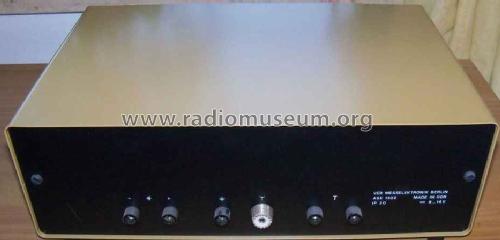

- Model: ASE 1302 - Messelektronik Berlin, VEB,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 350 x 110 x 220 mm / 13.8 x 4.3 x 8.7 inch
- Notes
-
KW-Transceiver ASE 1302. Siehe auch AFE 12.
Frequenzbereiche 3,5 - 3,8 und 7,0 - 7,1 MHz; Betriebsarten USB und CW; Pout 10 W. Mithörtongenerator und Preselektor eingebaut. Stromaufnahme max. 2,6 A.
Vertrieb in Westdeutschland durch Bühler Elektronik, Baden-Baden und Karlsruhe.
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Price in first year of sale
- 498.00 DM
- Mentioned in
- Beam Amateurfunk-Geräteführer '90
- Literature/Schematics (1)
- -- Original prospect or advert (CQ-DL 11/1986, Seite 8)
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
