• Country
• Germany

• Manufacturer / Brand
• Messelektronik Berlin, VEB, RFT (Ostd.)

• Year
• 1962 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 269182

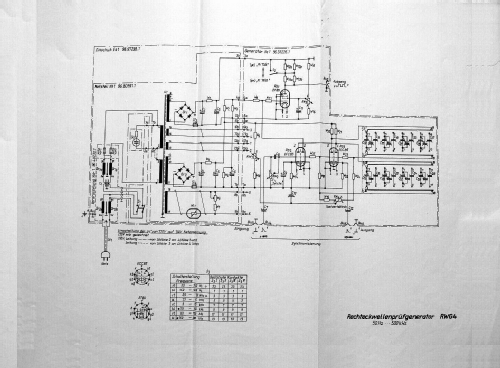

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC85 ECC85 EF80

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Rechteckwellengenerator RWG 4 - Messelektronik Berlin, VEB,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 300 x 210 x 160 mm / 11.8 x 8.3 x 6.3 inch

• Notes

• Rechteckwellengenerator 50Hz-500kHz.
  Modell wie RWG 4 vom Werk für Fernmeldewesen, Berlin, jedoch mit leichten optischen Änderungen und abweichender Beschriftung.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Author
• Model page created by Michael Mischke. See "Data change" for further contributors.
