Heimtonbandgerät BG26 Luxus
Messgerätewerk Zwönitz, VEB; Zwönitz (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Messgerätewerk Zwönitz, VEB; Zwönitz (Ostd.)
- Year
- 1964
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 129387

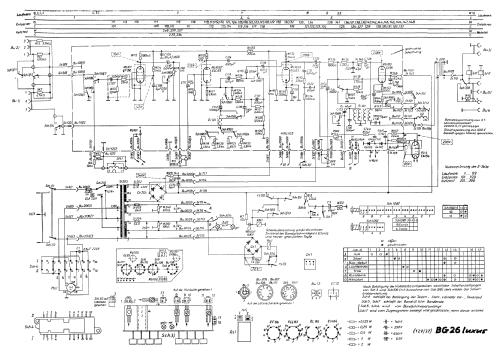

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Heimtonbandgerät BG26 Luxus - Messgerätewerk Zwönitz, VEB;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 421 x 147 x 366 mm / 16.6 x 5.8 x 14.4 inch
- Notes
- Der Unterschied zum BG26 ist, dass das BG26 Luxus ein solides Sperrholzgehäuse hat, in dessem Vorderteil 2 Ovallautsprecher untergebracht sind und damit ein sehr guter Klang erreicht wurde.
- Source of data
- - - Data from my own collection
- Mentioned in
- Die Geschichte der Fonoindustrie der DDR 1945 bis 1990
- Literature/Schematics (1)
- Service- DVD vom Funkverlag B. Hein.
- Author
- Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
