• Country
• Germany

• Manufacturer / Brand
• Messgerätewerk Zwönitz, VEB; Zwönitz (Ostd.)

• Year
• 1957 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 206464

• Number of Tubes
• 7

• Valves / Tubes
• 6AC7_DDR 6AC7_DDR 6AC7_DDR 6AC7_DDR EY51 EZ12 B6S1

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

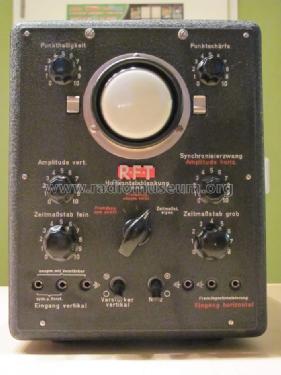

• Model: Oszillograf 1KO / 703 [EZ12] - Messgerätewerk Zwönitz, VEB;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 215 x 275 x 320 mm / 8.5 x 10.8 x 12.6 inch

• Notes

• siehe auch Modell mit AZ11 als Gleichrichter

• Net weight (2.2 lb = 1 kg)
• 10.6 kg / 23 lb 5.6 oz (23.348 lb)

• Author
• Model page created by Karsten Schulze. See "Data change" for further contributors.
