• Country
• Germany

• Manufacturer / Brand
• Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg

• Year
• 1988 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 230370

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 2 x 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Leistungsmessgerät M3031 - Metrawatt, BBC Goerz Metrawatt

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 110 x 62 x 181 mm / 4.3 x 2.4 x 7.1 inch

• Notes

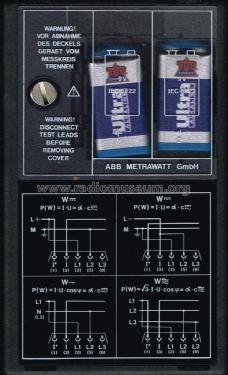

• Analoges Leistungsmessgerät für Gleich- Wechsel- und Drehstromnetze.
  Es  lassen sich Gleich- und Wechselstromleistungen bis 12500 Watt messen, Drehstrom bis 25000 W.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
