• Country
• Germany

• Manufacturer / Brand
• Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg

• Year
• 1975 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 332083

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / C: 1 x 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Unigor A41 - Metrawatt, BBC Goerz Metrawatt

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 110 x 82 x 212 mm / 4.3 x 3.2 x 8.3 inch

• Notes

• Vielfachmessinstrument.
  Messbereich V DC 6 mV bis 1200 V
  Messbereich V AC 60 mV bis 1200 V
  Messbereich A DC: 300 uA bis 30 A
  Messbereich A AC: 1.5 mA bis 30 A
  Im Ohmbereich sind 5 Messbereiche vorhanden.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Mentioned in

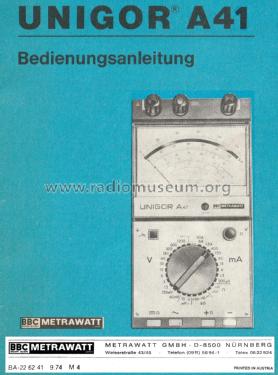

• - - Manufacturers Literature

• Author
• Model page created by Reinhard Zwirner. See "Data change" for further contributors.
