- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1955/1956
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 20250

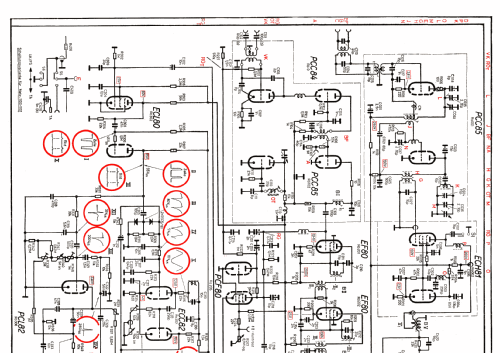

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- PCC85 ECH81 PCC84 PCC85 EF80 EF80 EF80 PL83 EF80 PCL82 PCF80 ECL80 PCL82 ECC82 PL81 PY81 EY86 MW43-64
- Tuned circuits
- 10 FM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1010 - Metz Transformatoren- und
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 550 x 920 x 520 mm / 21.7 x 36.2 x 20.5 inch
- Notes
- Mit UKW Empfangsteil.
- Net weight (2.2 lb = 1 kg)
- 43 kg / 94 lb 11.4 oz (94.714 lb)
- Price in first year of sale
- 968.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1955/56
- Literature/Schematics (1)
- -- Original-techn. papers.
