• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1960/1961

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 103034

• Number of Tubes
• 14

• Valves / Tubes
• AW53-88

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

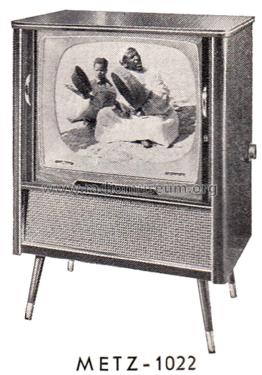

• Model: 1022 - Metz Transformatoren- und

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 695 x 945 x 390 mm / 27.4 x 37.2 x 15.4 inch

• Notes
• Technische Daten wie 864E.

• Net weight (2.2 lb = 1 kg)
• 42 kg / 92 lb 8.2 oz (92.511 lb)

• Price in first year of sale
• 899.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
