- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1959/1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 101505
Q: Metz Service
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- AW53-88
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

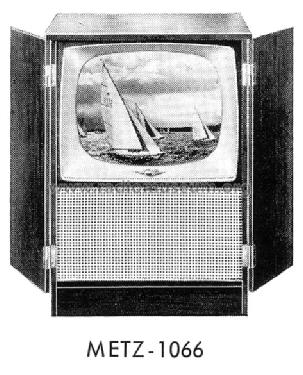

- Model: 1066 - Metz Transformatoren- und
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 640 x 920 x 480 mm / 25.2 x 36.2 x 18.9 inch
- Notes
- Technische Daten wie 963, jedoch Standgerät auf Gummischwenkrollen mit verschließbaren Türen.
- Net weight (2.2 lb = 1 kg)
- 70 kg / 154 lb 3 oz (154.185 lb)
- Price in first year of sale
- 1,199.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
