- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21578

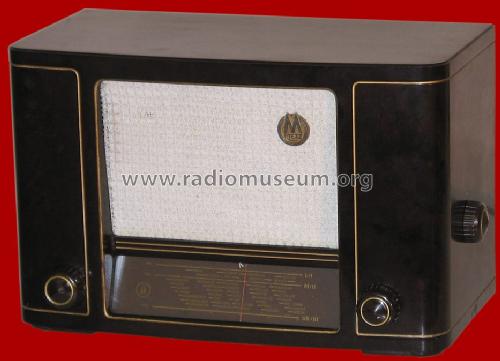

Bild aus ebay
Q: Katalog RF-Großhandel 1952/53
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); ZF/IF 473/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 5 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 202W - Metz Transformatoren- und
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 300 x 200 x 160 mm / 11.8 x 7.9 x 6.3 inch
- Notes
- Auch als Modell 202K mit Kurzwellenbereich anstatt Langwelle. Achtung! Spartrafo, Chassis nicht galvanisch vom Netz getrennt. Je nach Polung des Netzsteckers können auch die Buchsen des Lautsprecheranschlusses Netzpotential führen.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Price in first year of sale
- 198.00 DM
- External source of data
- Erb
- Source of data
- Kat.d.Rundf.GrossH.1952/53
