• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1957–1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21587

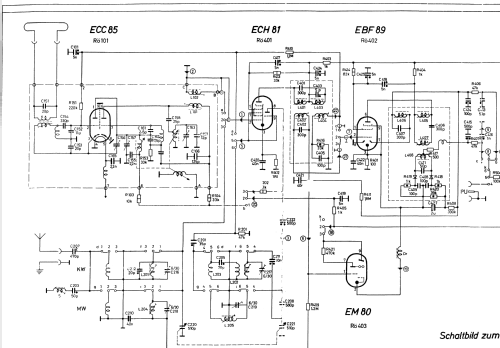

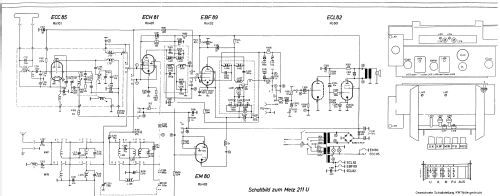

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EBF89 ECL82 EM80

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 211 U - Metz Transformatoren- und

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 390 x 280 x 220 mm / 15.4 x 11 x 8.7 inch

• Notes

• Im Dezember 1958 wird das Gerät für 239.- DM angeboten (Metz Verkaufsprospekt).

  Siehe auch das Exportmodell für die USA Metz 1211U (FM, SW; MW).

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 209.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Mentioned in
• -- Schematic
