• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1952–1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3735

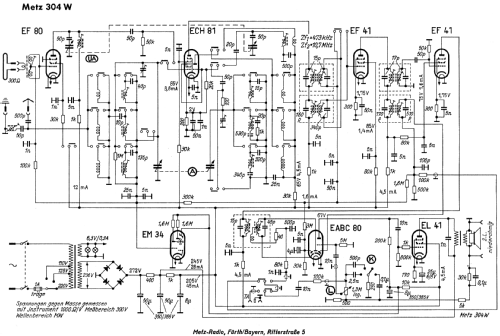

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF80 ECH81 EF41 EF41 EM34 EABC80 EL41

• Number of Transistors

• Semiconductors
• B250C90

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 18 cm = 7.1 inch

• Power out
• 3.9 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

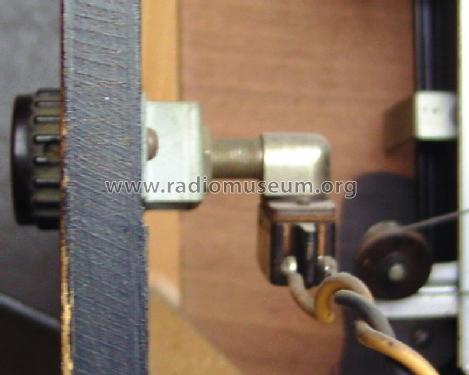

• Model: 304W - Metz Transformatoren- und

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 510 x 350 x 265 mm / 20.1 x 13.8 x 10.4 inch

• Notes

•

  Das Gerät hat einen 4-stufigen Tonblenden-Schalter.

• Net weight (2.2 lb = 1 kg)
• 9.5 kg / 20 lb 14.8 oz (20.925 lb)

• Price in first year of sale
• 298.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Kat.d.Rundf.GrossH.1953/54

• Literature/Schematics (1)
• -- Original-techn. papers. (Schaltbild, 15.5.52 Ausg 1)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 584 models, 457 with images and 303 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
