- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1955/1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 21582
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 473 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 308 - Metz Transformatoren- und
- Dimensions (WHD)
- 570 x 370 x 220 mm / 22.4 x 14.6 x 8.7 inch
- Notes
-
Zum Unterschied zum 308/3D mit 8 Tasten hat der 308 nur 5 Tasten.
- Net weight (2.2 lb = 1 kg)
- 13 kg / 28 lb 10.1 oz (28.634 lb)
- External source of data
- Erb
- Mentioned in

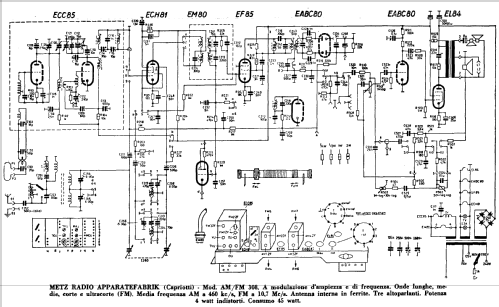

- -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)
