- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1956/1957
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 21078
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- E88CC PCC85 EF80 EF80 EF80 PL83 EF80 PCF80 PCL82 ECH81 PL81 PY81 EY86 EF80 PCL82 MW43-69
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

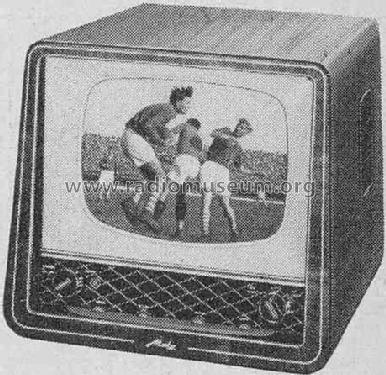

- Model: 911 - Metz Transformatoren- und
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 550 x 500 x 490 mm / 21.7 x 19.7 x 19.3 inch
- Notes
- VHF-Band I & III.
- Net weight (2.2 lb = 1 kg)
- 31 kg / 68 lb 4.5 oz (68.282 lb)
- Price in first year of sale
- 828.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1956/57
