912

• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1956–1958

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 20855

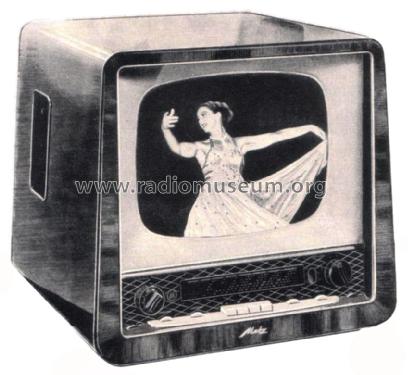

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• MW43-69 or AW43-80 E88CC PCC85 EF80 EF80 EF80 PL83 EF80 PCF80 PCL82 ECH81 PL81 PY81 EY86 UCC85 UF85 UF85 UABC80 UL84

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 11 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 912 - Metz Transformatoren- und

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 500 x 490 mm / 21.7 x 19.7 x 19.3 inch

• Notes
• mit organisch eingebautem UKW-Teil.

• Net weight (2.2 lb = 1 kg)
• 32 kg / 70 lb 7.8 oz (70.485 lb)

• Price in first year of sale
• 888.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57
