- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1959/1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 101497
Q: Metz Service
Q: Metz Service

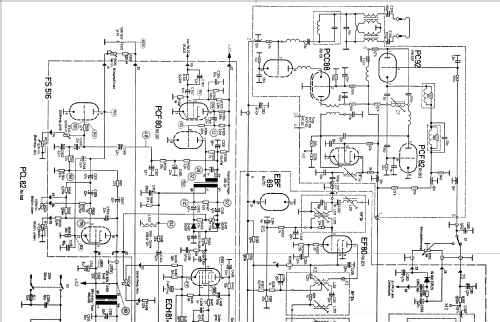

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- AW43-88
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: 923R - Metz Transformatoren- und
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 515 x 430 x 395 mm / 20.3 x 16.9 x 15.6 inch
- Notes
- VHF; eingebauter UHF-Tuner gegen Mehrpreis.
- Net weight (2.2 lb = 1 kg)
- 21 kg / 46 lb 4.1 oz (46.256 lb)
- Price in first year of sale
- 819.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
