- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1959/1960
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 101623

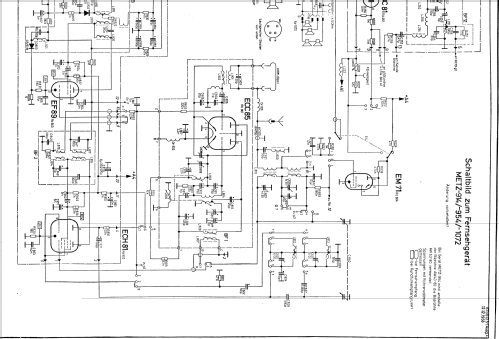

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- AW53-80
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 26 cm = 10.2 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 954 - Metz Transformatoren- und
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 610 x 550 x 500 mm / 24 x 21.7 x 19.7 inch
- Notes
- Technische Daten wie 914, jedoch mit 53-cm-Bildröhre.
- Net weight (2.2 lb = 1 kg)
- 38 kg / 83 lb 11.2 oz (83.7 lb)
- Price in first year of sale
- 1,049.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
