• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3711

• Number of Tubes
• 6

• Valves / Tubes
• UCH42 UAF42 UAF42 UL41 UM4 UY41

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

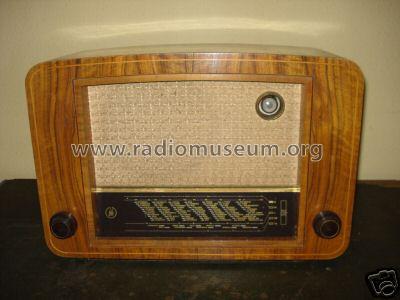

• Model: Capri GW - Metz Transformatoren- und

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 340 x 220 mm / 19.7 x 13.4 x 8.7 inch

• Notes
• variable Bandbreite; KW-Lupe.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• Price in first year of sale
• 278.00 DM

• Source of data
• Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Funkschau (5015)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
