- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1986
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 147303
Original prospekt in 1986.
Original prospekt in 1986.

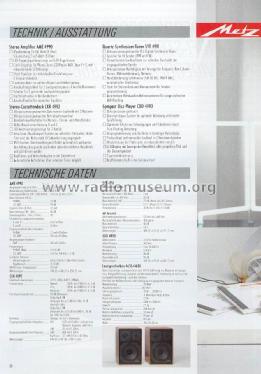

Metz Sales Brochure

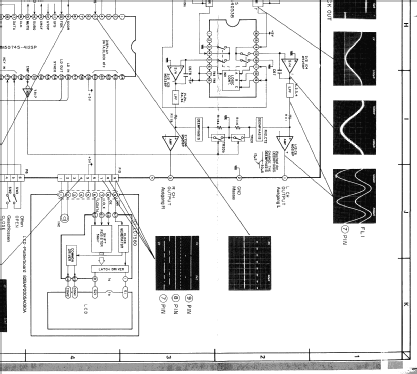

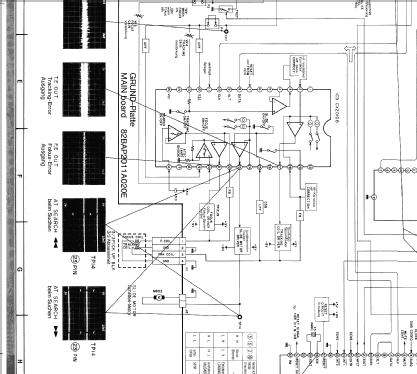

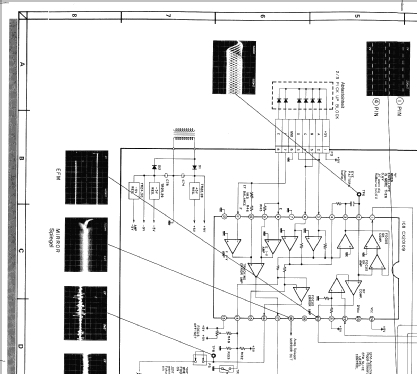

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- CD-Player, -Writer, MD, MOD (audio)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: CDD4993 - Metz Transformatoren- und
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 440 x 79 x 260 mm / 17.3 x 3.1 x 10.2 inch
- Notes
- CD-Player mit Dreistrahl-Laser-System, Mikroprocessor-gesteuert. 36 Titel vorprammierbar, Titelsuchlauf, LCD-Display mit Anzeige der Einzeltitel, aller gespielten Titel und der Gesamtspielzeit.
Gehäuseausführung: Schwarz-metallic.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
