• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1948–1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3672

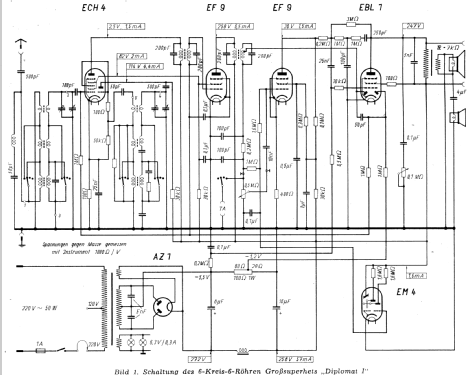

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 EF9 EF9 EBL1 EM4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120/220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Diplomat MS/W66 - Metz Transformatoren- und

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 640 x 400 x 301 mm / 25.2 x 15.7 x 11.9 inch

• Notes
• rundl. Form (4/0) [572]

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Price in first year of sale
• 495.00 DM

• Source of data
• Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb

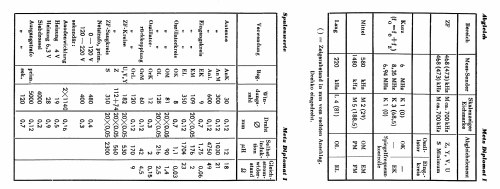

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 3

• Mentioned in
• Funkschau (4913)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
