• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1981–1983

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 178009

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

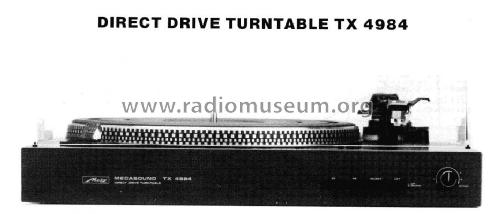

• Model: Direct Drive Turntable TX-4984 - Metz Transformatoren- und

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 125 x 350 mm / 17.1 x 4.9 x 13.8 inch

• Notes
• 1 IC; Plattenspieler mit Direktantrieb, Tonabnehmer: Drehmagnetwandler,
  System Audio-Technika AT-72 K, Abtastnadel Audio-Technika ATN 72 C.

• Literature/Schematics (1)
• Original Metz Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
