- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1973/1974
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 128758
Weiler Katalog 1973
- Number of Tubes
- 1
- Valves / Tubes
- A56-140X
- Number of Transistors
- 91
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

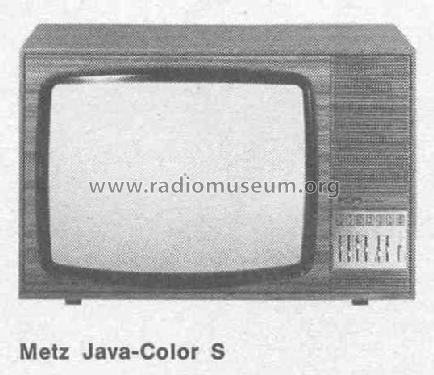

- Model: Java-Color S - Metz Transformatoren- und
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 700 x 470 x 430 mm / 27.6 x 18.5 x 16.9 inch
- Notes
- 56 cm Farbfernseh-Tischgerät, 4 ICs, 124 Dioden, 4 Thyristoren, Hochspannungskaskade, VHF/UHF-Tuner, Fernbedienung Metz 95.
- Net weight (2.2 lb = 1 kg)
- 45 kg / 99 lb 1.9 oz (99.119 lb)
- Mentioned in
- -- Original-techn. papers. (Weiler Angebot 1973/74)
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
