• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156637

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC40 ECH42 ECH4 EBL1 EM4

• Number of Transistors

• Semiconductors
• 220E60

• Main principle
• Superheterodyne (common); ZF/IF 473/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

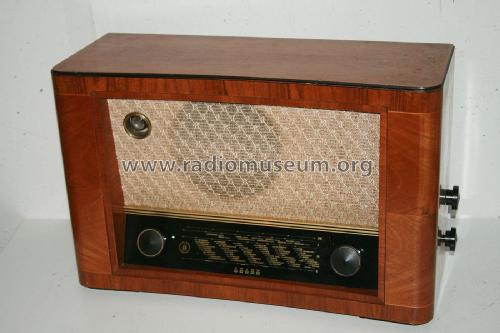

• Model: Java S mit UKW [ECC40] - Metz Transformatoren- und

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 380 x 230 mm / 22.8 x 15 x 9.1 inch

• Notes

• UKW/FM mit Flankendemodulation.

  Siehe auch Metz Java S mit EF42 im UKW-Teil.

• Price in first year of sale
• 320.00 DM

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Guido Höh. See "Data change" for further contributors.
