- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 3659

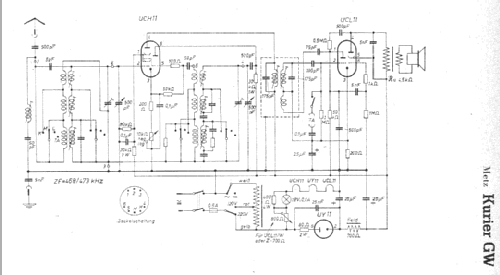

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 120/220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 13 cm = 5.1 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Kurier GW49 - Metz Transformatoren- und
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 330 x 230 x 200 mm / 13 x 9.1 x 7.9 inch
- Net weight (2.2 lb = 1 kg)
- 5.5 kg / 12 lb 1.8 oz (12.115 lb)
- External source of data
- Ernst Erb, HB9RXQ
- Source of data
- Das Rundfunk-Jahr 1948/49
