• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1963/1964

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 108525

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• PC88 PC86 PCF801 EF183 EF183 EF184 PCL86 PCL84 ECH84 PCL85 PCF80 PL500 PY88 DY86 AW59-91 or A59-11W

• Number of Transistors

• Semiconductors
• AF116 AF116 OA91 RL232g RL232g M3 OA81 OA91 OA90 OA81 V60C1 OA81 OY101

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

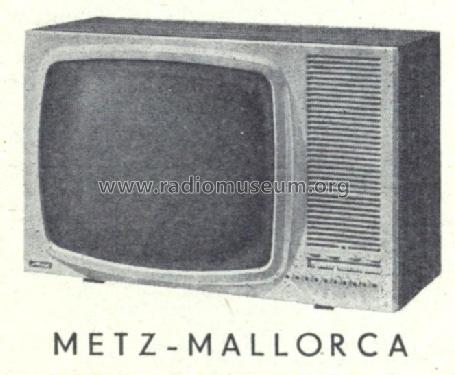

• Model: Mallorca 633 [AW59-91] - Metz Transformatoren- und

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 760 x 480 x 360 mm / 29.9 x 18.9 x 14.2 inch

• Notes

• VHF/UHF. Technische Daten wie Capri (AW59-91), jedoch Gehäuse in moderner Form.

  Anschluss für Kabelfernbedienung FB 112 für Lautstärke und Helligkeit.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Price in first year of sale
• 1,049.00 DM

• Source of data
• Handbuch VDRG 1963/1964

• Mentioned in
• Katalog RF/FS-Großhandel 1963/64

• Literature/Schematics (1)
• -- Original-techn. papers. (Schaltbild 17.4.1963)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
