Meistersinger W 56/04 2 × EF9
Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 105805
Metz Meistersinger seitlich

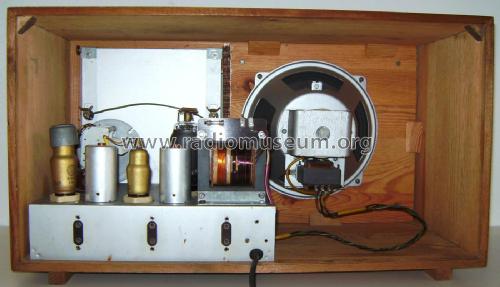

Metz Meistersinger innen
Metz Meistersinger Back
Metz Meistersinger Front
Metz Meistersinger
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 or 473 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Meistersinger W 56/04 [2 × EF9] - Metz Transformatoren- und
- Shape
- Tablemodel, with any shape - general.
