• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1973/1974

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 128745

• Number of Tubes
• 1

• Valves / Tubes
• A66-140X

• Number of Transistors
• 55

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

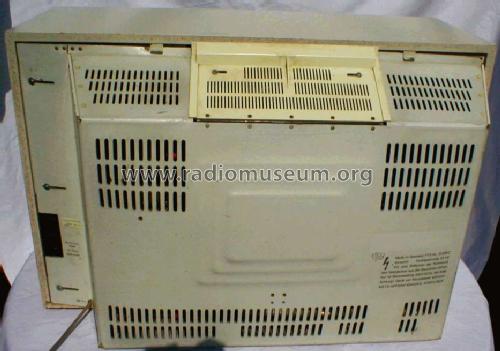

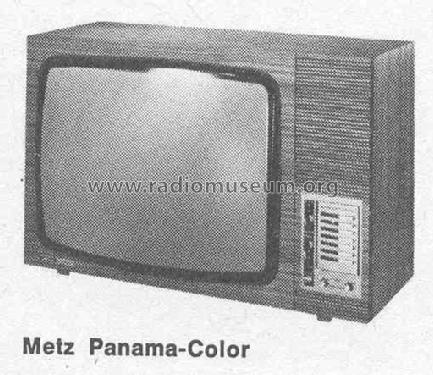

• Model: Panama-Color - Metz Transformatoren- und

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 780 x 520 x 460 mm / 30.7 x 20.5 x 18.1 inch

• Notes
• 66 cm Farbfernseh-Tischgerät, 4 ICs, 79 Dioden, 4 Thyristoren, Hochspannungskaskade, VHF/UHF-Tuner, Fernbedienung Metz 94.

• Net weight (2.2 lb = 1 kg)
• 50 kg / 110 lb 2.1 oz (110.132 lb)

• Mentioned in
• -- Original-techn. papers. (Weiler Angebot 1973/74)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
