• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3720

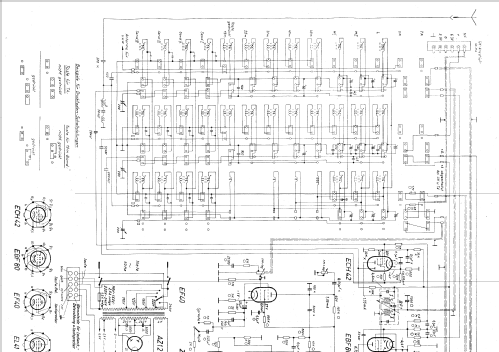

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECH42 EBF80 EF40 EL41 EM4 EL41 AZ12

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Philharmonie MK/W I [Plattenspieler] - Metz Transformatoren- und

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 999 x 800 x 410 mm / 39.3 x 31.5 x 16.1 inch

• Notes
•

• Net weight (2.2 lb = 1 kg)
• 85 kg / 187 lb 3.6 oz (187.225 lb)

• Price in first year of sale
• 1,150.00 DM

• Source of data
• Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Funkschau (5015)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
