Phonosuper 502 502W EL41
Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Country
- Germany
- Manufacturer / Brand
- Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 355315
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); ZF/IF 473/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 3.9 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Phonosuper 502 502W [EL41] - Metz Transformatoren- und
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 670 x 430 x 400 mm / 26.4 x 16.9 x 15.7 inch
- Notes
-

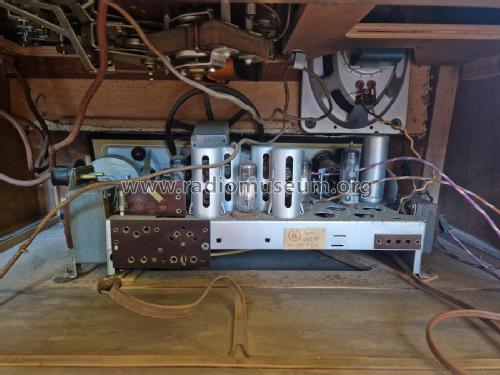

Chassis ähnlich Metz 304W (EF85), Gleichrichter liegend, EM34 hinter der Skala.
Plattenwechsler Dual 1002E
Siehe auch Metz Phonosuper 502W mit Gegentakt-Endstufe 2 x EL42
- Net weight (2.2 lb = 1 kg)
- 20 kg / 44 lb 0.8 oz (44.053 lb)
- Mentioned in

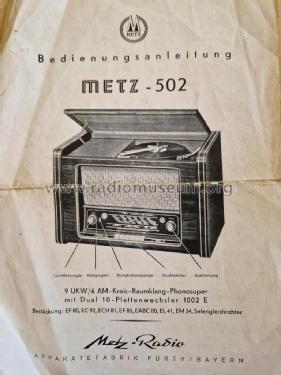

- - - Manufacturers Literature (Bedienungsanleitung)
- Author
- Model page created by Miguel Thalhofer. See "Data change" for further contributors.
