Quarz Synthesizer FM/AM Tuner SX-4961 ab Nr. 56001

• Country
• Germany

• Manufacturer / Brand
• Metz Transformatoren- und Apparatefabrik (ex TAM), Fürth

• Year
• 1979–1981

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 178027

• Picture

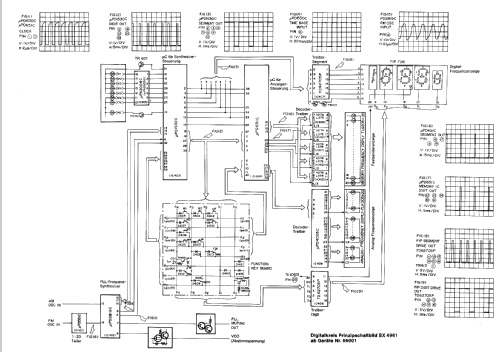

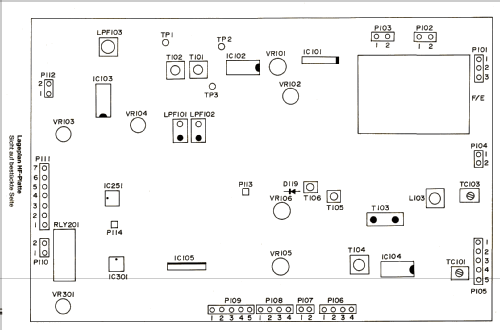

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 30

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Quarz Synthesizer FM/AM Tuner SX-4961 [ab Nr. 56001] - Metz Transformatoren- und

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 60 x 340 mm / 17.7 x 2.4 x 13.4 inch

• Notes
• 35 IC; Ausgangspegel DIN (Buchse), FM: 1kHZ, 75 kHz Hub 1,0 Volt, AM: 1 kHz, 100% Modulation 0,3 Volt, Schrittweite des Frequenz-Sythesizer FM 50 kHz, AM manuel 1 kHz, AM automatischer Sendersuchlauf 9 kHz.

• Literature/Schematics (1)
• Original Metz Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
