Multifunktions-Antennenverstärker CAMP1
Meuser Antennen Elektronik, Ing. Rainer Meuser; Kehl
- Country
- Germany
- Manufacturer / Brand
- Meuser Antennen Elektronik, Ing. Rainer Meuser; Kehl
- Year
- 1992 ??
- Category
- RF (Radio Frequency-) Amplifier
- Radiomuseum.org ID
- 246373
- Number of Transistors
- 3
- Semiconductors
- unknown_tr BFW92 BC337
- Main principle
- Radio Frequency Amplification only
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Other, details in remarks or not known.
- Loudspeaker
- - - No sound reproduction output.
- Material
- Various materials
- from Radiomuseum.org
- Model: Multifunktions-Antennenverstärker CAMP1 - Meuser Antennen Elektronik,
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 102 x 75 x 45 mm / 4 x 3 x 1.8 inch
- Notes
-

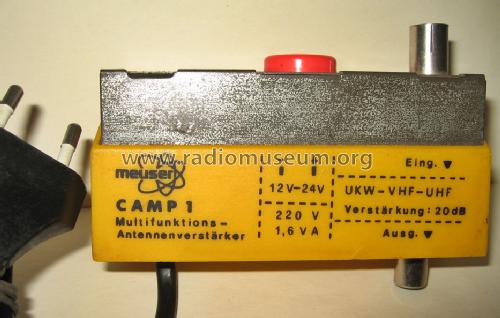

Antennenverstärker für die Frequenzbereiche UKW, VHF und UHF; Verstärkung: 20 dB; Speisung wahlweise über internes Netzteil (220 V/ 1,6 VA) oder DC-Anschluss (12- 24 V); Stahlblechgehäuse mit wandmontierbarer Plastverkleidung.
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
