Active Antenna 1020-B
MFJ Enterprises; Starkville (MS)
- Country
- United States of America (USA)
- Manufacturer / Brand
- MFJ Enterprises; Starkville (MS)
- Year
- 1994 ?
- Category
- Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
- Radiomuseum.org ID
- 327830
- Number of Transistors
- 2
- Semiconductors
- Main principle
- Radio Frequency Amplification only
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Batteries / addl. power jack / 9-12 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org

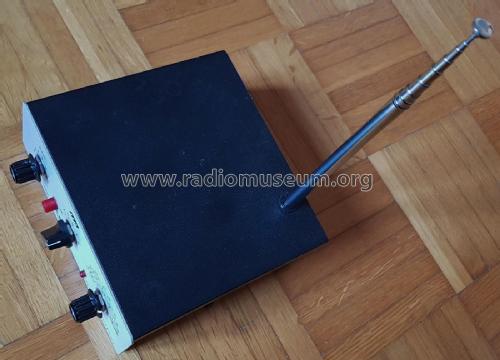

- Model: Active Antenna 1020-B - MFJ Enterprises; Starkville MS
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 165 x 60 x 150 mm / 6.5 x 2.4 x 5.9 inch
- Notes
-
Active antenna / RF amplifier.
Frequency range: 300 KHz-30 Mhz in five bands.
Preselector control.
Gain control.
On-Off bypass switch.
Internal 9V battery.
Power jack (center positive) for external 9-12V power supply.
SO-239 and RCA in/out connection sockets.
Internal telescopic antenna.
Small and lightweight.
- Net weight (2.2 lb = 1 kg)
- 0.2 kg / 0 lb 7 oz (0.441 lb)
- Author
- Model page created by Mirko Bersani. See "Data change" for further contributors.
