• Country
• Czechoslovakia

• Manufacturer / Brand
• Microphona (Mikrofona), Bratri Knotkove, Praha-Strasnice

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 187643

• • alternative name: Telefony Microfona

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes

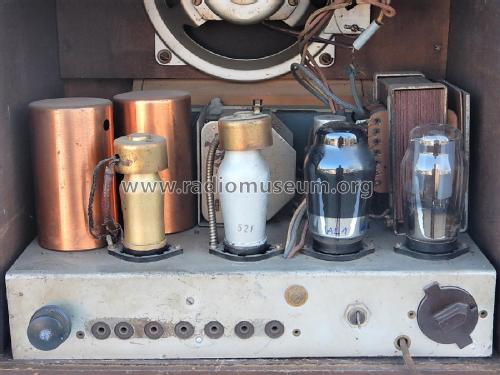

• AF7 ABC1 AL1 AZ1

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

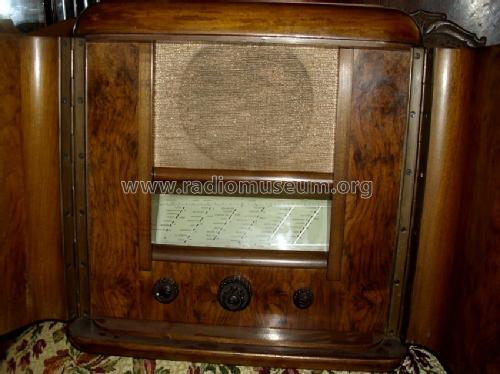

• Model: Superdual MK306 [Luxus] - Microphona Mikrofona, Bratri

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• External source of data
• Baudys Ceskoslovenske prijimace Praha 1948

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
